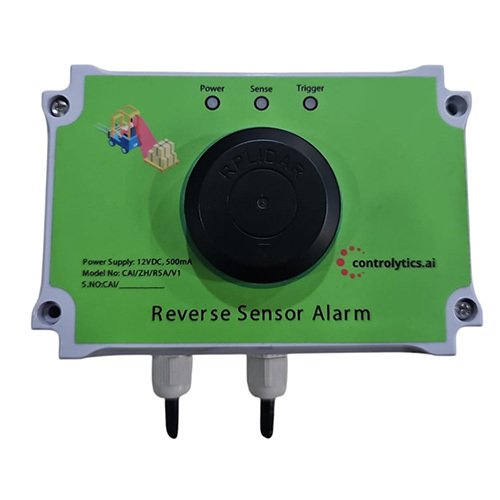

Reverse Sensor Alarm

Get a Price/Quote

MOQ : 1 Unit

Reverse Sensor Alarm Specification

Product Type
Reverse Sensor Alarm

Operation Way
Other

Power of Motor
No motor (electronic alarm system)

Mode Of Drive
Other

Suitable For
All Car Types

Detection Range
0.3 to 2.5 meters

Response Time
< 0.3 seconds

Housing Material
ABS Plastic

Waterproof Rating
IP67

Voltage
12V DC

Operating Temperature
-30C to +80C

Alarm Sound Level
> 85 dB

Number of Sensors Supported
4 Sensors

Installation
Rear Bumper Mounted

Reverse Sensor Alarm Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Reverse Sensor Alarm

FEATURES

User-Friendly Interface: Smart and intuitive web UI for alarm distance and Zones Configuration.
Continuous Scanning: RSA continuously monitors the area around the forklift, providing real-time awareness of potential hazards.

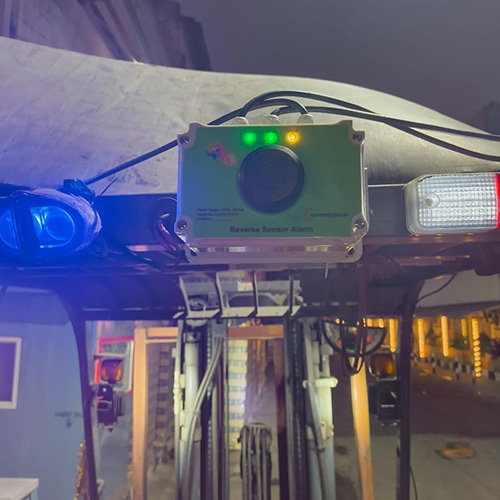

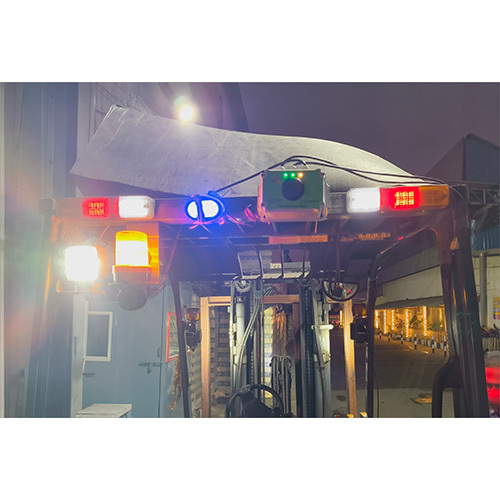

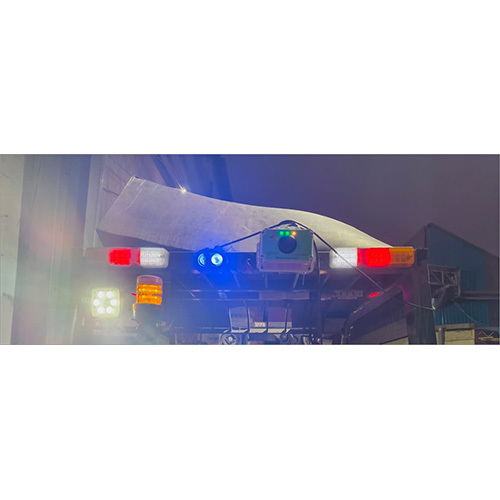

Integrated Reversing Mechanism: The system can be seamlessly integrated with the forklift's reversing mechanism, activating rear sensors automatically when the vehicle is in reverse.
Configurable Alert Zones: The proximity area can be divided into two ranges, allowing for customizable alerts: a milder alert for distant obstacles and a louder alert for nearby obstacles.
Universal Compatibility: Works with all electric and diesel vehicles, ensuring broad applicability.

APPLICATIONS

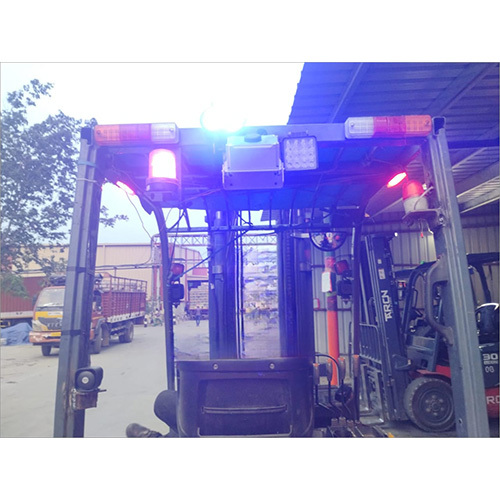

Forklift Operations in Warehouses
Loading Docks
Manufacturing Facilities
Distribution Centers
Construction Sites
Retail Environments
Overhead cranes
Shipping and Receiving Areas
Mining trucks
Automatic vehicle detection
Automatic door closing/Opening

OUTCOMES

Enhanced Safety: Reduces collision risks with timely alerts for nearby obstacles.
Improved Maneuverability: Allows precise positioning in tight spaces, minimizing equipment damage.
Increased Efficiency: Streamlines operations for faster loading and unloading.
Reduced Operator Stress: Boosts confidence with reliable feedback on surroundings.
Lower Maintenance Costs: Prevents accidents, reducing wear and tear on equipment.
Regulatory Compliance: Supports adherence to safety standards, promoting a safer work environment.

SPECIFICATIONS

Electrical

Power Supply : 12VDC
Max. Current : 1 Amps
Relays : 30 Amps(1 Nos),2 Amps(2 Nos)
Protections : Reverse Voltage Short Circuit Protection
Tower lamp : Dual Color 12V DC
Flash Buzzer : 12 V DC

Mechanical

Material : ABS and Powder Coated MS
Dimensions : Refer the Drawing Section
Mounting Holes : External , M4 , M6
IP rating : IP64

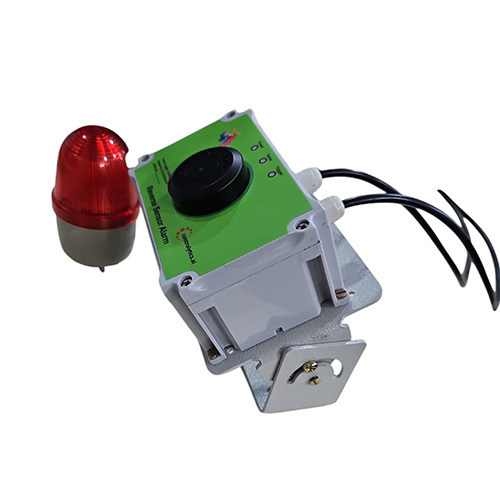

Mounting bracket to adjust angle as per mounting position

Lidar Sensor

Distance : 0.05 to 12 meters
Scanning : 10 Hz
Protection : IP54
Light Immunity : 40,000 lux
Working principle : TOF Scanner

Environmental Conditions

Operating ambient temperature -10deg C to 65 deg C
Relative Humidity 0 to 95%, non condensing

Integrations and Customizations

Integration with Crawl mode/Low speed mode
Integration Fleet management
Integration with Crash/Over Speed sensors

Procure a commanding Reverse Sensor Alarm, engineered for rarefied performance in all car types. This best-seller, manufactured, supplied, and serviced in India, offers glorious reliability with its 12V DC operation and ear-catching >85 dB alarm. Detects obstacles from 0.3 to 2.5 meters, reacting in under 0.3 seconds-even in the harshest climates (-30C to +80C). Its robust IP67 ABS housing and support for 4 sensors make it a deal for drivers seeking safety. Rear bumper installation is seamless, creating an ultra-efficient, electronic safety solution.

Diverse Applications and Users of the Reverse Sensor Alarm

The Reverse Sensor Alarm's versatility extends to private car owners, commercial fleet operators, and vehicle rental providers. Beyond standard vehicles, it's invaluable for buses, delivery vans, and utility trucks, ensuring safe reversing in crowded or low-visibility conditions. Its rarefied detection capabilities make it ideal for use in parking lots, warehouses, and residential complexes-anywhere obstacle detection is crucial. Both individual drivers and fleet managers value its unwavering safety promise.

Delivery, Market, and Sample Availability Information

Our seamless Order Processing system ensures quick turnaround from Purchase Order to dispatch. This product is ready for fast delivery nationwide, serving India's main domestic markets with precision. Each Reverse Sensor Alarm can be dispatched promptly, with samples available upon request for evaluation before bulk agreement. Trust an efficient supply chain that guarantees timely fulfillment, whether you're ordering a single unit or a full container load.

FAQ's of Reverse Sensor Alarm:

Q: How does the Reverse Sensor Alarm detect obstacles behind my vehicle?

A: The Reverse Sensor Alarm utilizes advanced ultrasonic sensors installed on the rear bumper. These sensors emit ultrasonic waves, detecting obstacles within a range of 0.3 to 2.5 meters, and alerting the driver with progressively louder beeps as objects get closer.

Q: What benefits does the Reverse Sensor Alarm offer for all car types?

A: This alarm provides enhanced safety during parking and reversing by minimizing collision risks. Suitable for any car type, it operates effectively in extreme temperatures and weather conditions due to its IP67 waterproof ABS housing.

Q: When will my Reverse Sensor Alarm order be dispatched after purchase?

A: Once the purchase order is confirmed, our streamlined order processing ensures that most orders are dispatched quickly, typically within the standard delivery timelines applicable to your location in India.

Q: Where can this Reverse Sensor Alarm be installed on my vehicle?

A: The device is specifically designed for installation on the rear bumper of your vehicle, allowing optimal positioning for accurate obstacle detection and driver alerts.

Q: What is the process for sample requests before bulk procurement?

A: You can request a sample of the Reverse Sensor Alarm. Once your request is received, we process it promptly, shipping the sample so you can evaluate performance prior to placing a bulk order.

Q: How many sensors does the system support, and can it be used in commercial fleets?

A: The system supports up to four sensors per vehicle, making it perfect for both private cars and commercial fleet vehicles such as vans, trucks, and buses that require superior reversing safety.
