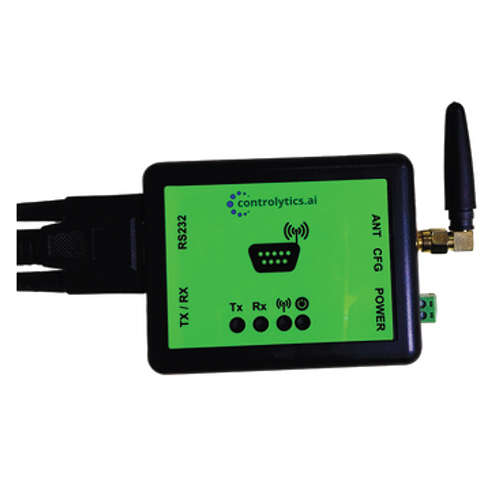

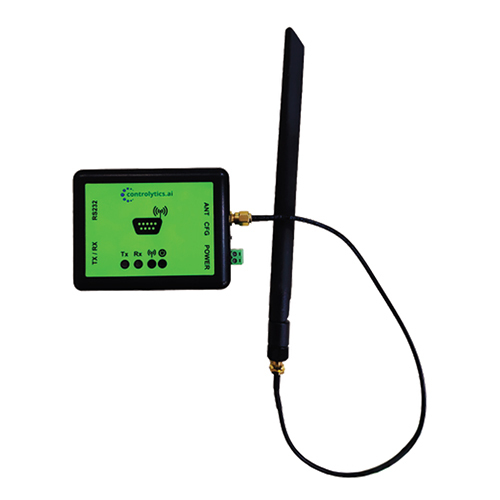

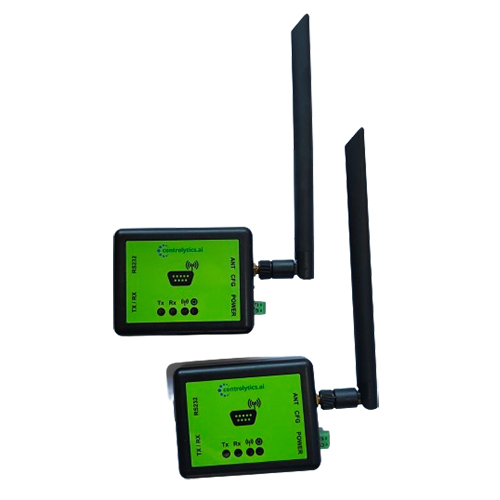

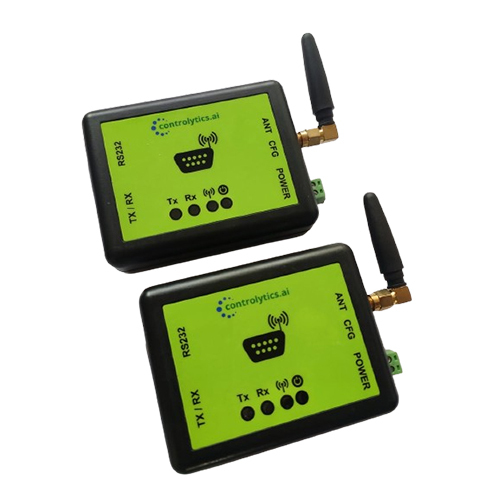

Wireless RS232 Modem

Get a Price/Quote

MOQ : 10 Pieces

Wireless RS232 Modem Specification

Wireless Standard
ISM Band

Operating Voltage
9V to 24V DC

Transmission Distance
Up to 1km (Line of Sight)

Usage/Application
Wireless Communication

Mounting Type
DIN Rail / Wall Mount

Antenna Type
External (Detachable)

Working Temperature
-20C to +70C

Enclosure Material
Industrial Grade Plastic or Metal

LED Indication
Power, Link, Data

Baud Rate
Up to 115200 bps

Interface
RS232 Serial

Wireless RS232 Modem Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Wireless RS232 Modem

This Industrial IoT Wireless RS232 Modem makes it easy to communicate with your PC or industrial computer using RS232/Serial communications wireless. Simply plug it in and open the serial port. Data will start streaming in from peripheral devices within wireless reach.

FEATURES

Industrial Grade IoT Wireless RS232 Modem
Connect with PLC, SCADA or any Industrial Computer
5V-32V DC Input Voltage Range
2 km Range(line of sight)
Connect to Embedded Systems and Industrial machines
868MHz operating frequency
Standard DB9 R232 Connector
Ease of Installation

APPLICATION SCOPE

Utilities Metering connections
Loadcell - indicator connections
Data acquisition meters
Bridge Anayser meters
Machine to PLC
Machine to Machine
Printer serial cables

Electrical

Power Supply : 5V , 9 to 24V
Max. Current : 1 Amps
Protections : Reverse Voltage Short Circuit Protection Surge Protection

Mechanical

Material : ABS Plastic
Dimensions : 90x70x28mm
Mounting : DIN Rail Optional
IP rating : IP54

Programmable Parameters

Baud Rate : 1200 to 115200 bps
Air Rate : 0.3 to 19.2 kbps
Device Address: 0x0H to 0xFFFFH
Communication channel : 0x0H to 0xFFH
Transmit Power : 10 dBm to 20 dBm
All parameters configurable from software

Pick Yours from our ravishing selection of Wireless RS232 Modems, a distinguished device crafted for masterful wireless communication. Featured with a robust RS232 Serial interface and an External (Detachable) Antenna, this modem delivers seamless data transfer with baud rates up to 115200 bps. Its transmission distance reaches up to 1km (Line of Sight), supported by an industrial-grade plastic or metal enclosure. Buy now for enhanced reliability with versatile mounting options (DIN Rail/Wall). Suitable for manufacturers, service providers, and suppliers across India, it operates efficiently from 9V to 24V DC, boasting LED indicators for Power, Link, and Data.

Application Surface and Commercial Uses

The Wireless RS232 Modem is ideal for various application surfaces including industrial automation, remote monitoring, and data acquisition systems. Its surface of application spans warehouses, factory floors, and commercial facilities where robust wireless communication is required. Commercial uses include asset tracking, process control, and machine-to-machine communication, making it a valuable tool for businesses seeking uninterrupted data exchange without physical connectivity.

Export Markets, Certifications & Payment Terms

Our Wireless RS232 Modem stands out in principal export markets such as Asia, Europe, and North America, bolstered by distinguished certifications for safety and performance. Proposal amount is finalized as per requirements, followed by meticulous packing & dispatch per export standards. Each unit is handed over only after thorough inspection. Flexible payment terms are available to suit your business needs, ensuring a streamlined procurement process and timely delivery.

FAQ's of Wireless RS232 Modem:

Q: How does the Wireless RS232 Modem enhance industrial wireless communication?

A: The modem offers seamless wireless data transfer for industrial environments, supporting baud rates up to 115200 bps and stable communication using an external detachable antenna. Its coverage of up to 1km ensures reliable transmission across large facilities.

Q: What mounting options are available for installing this modem?

A: This Wireless RS232 Modem can be easily mounted on DIN rails or attached to walls, allowing flexible installation in various workspace settings, such as factories and control rooms.

Q: Where can the Wireless RS232 Modem be applied for commercial usage?

A: It is perfect for commercial settings including warehouses, process control centers, and facilities requiring asset tracking or remote machinery monitoring, making operations more efficient and manageable.

Q: What certifications does the Wireless RS232 Modem have for export markets?

A: The modem holds prominent certifications that assure product safety and performance compliance, making it highly sought in major export markets like Asia, Europe, and North America.

Q: What is the process for ordering and dispatching the modem?

A: After proposal amount agreement, each unit is carefully packed, inspected, and dispatched according to export protocols. The product is handed over to clients following quality assurance checks.

Q: What benefit does LED indication provide on this device?

A: LED indicators for power, link, and data help users monitor device status at a glance, ensuring quick troubleshooting and reliable operational awareness.
